700~2700MHz/150~200W Amplifier

Classification:

Key words:

Complete Equipment Series

Active Module Series

Passive Device Series

Antenna Series

Product Description

Technical specifications:

Item	Indicator	Remark
Frequency range	700~2700MHz	Need to be customized in sections
Maximum working bandwidth	100MHz	700-1000 M Band
	150MHz	1000-1500 M Band
	200MHz	1500-2700 M Band
Maximum input power	≤10dBm
Output power P_max	52/53±0.5 dBm	Customizable
Signal mode	CW Signal
Gain	50/55±1 dB
Passband Ripple	△G_P≤1.5dB
ALC control range	≥20dB
ATT range	≥25dB
ATT error	≤1.0dB
Port VSWR	≤1.3
Power amplifier switch	Have	Software control, external control can also be customized
Input power detection	-30 dBm~0 dBm	Software detection, also can customize external analog detection
Output power detection	15dBm~55dBm
Reflected power detection	10dBm~53dBm
Fault alarm	Have	Software detection
VSWR alarm	Have	Software detection, also can customize external analog detection
Temperature detection	-40~100℃
Working voltage	28DCV	28~30DCV
Static working current	≤2A
Dynamic working current	≤9A	@100W output
Operating temperature range	-40~85℃
Monitoring interface	Pin 1: GND Pin 2: RS485-A Pin 3: RS485-B	2 parallel connection, other interfaces can also be customized
RF interface	SMA-K	Customizable

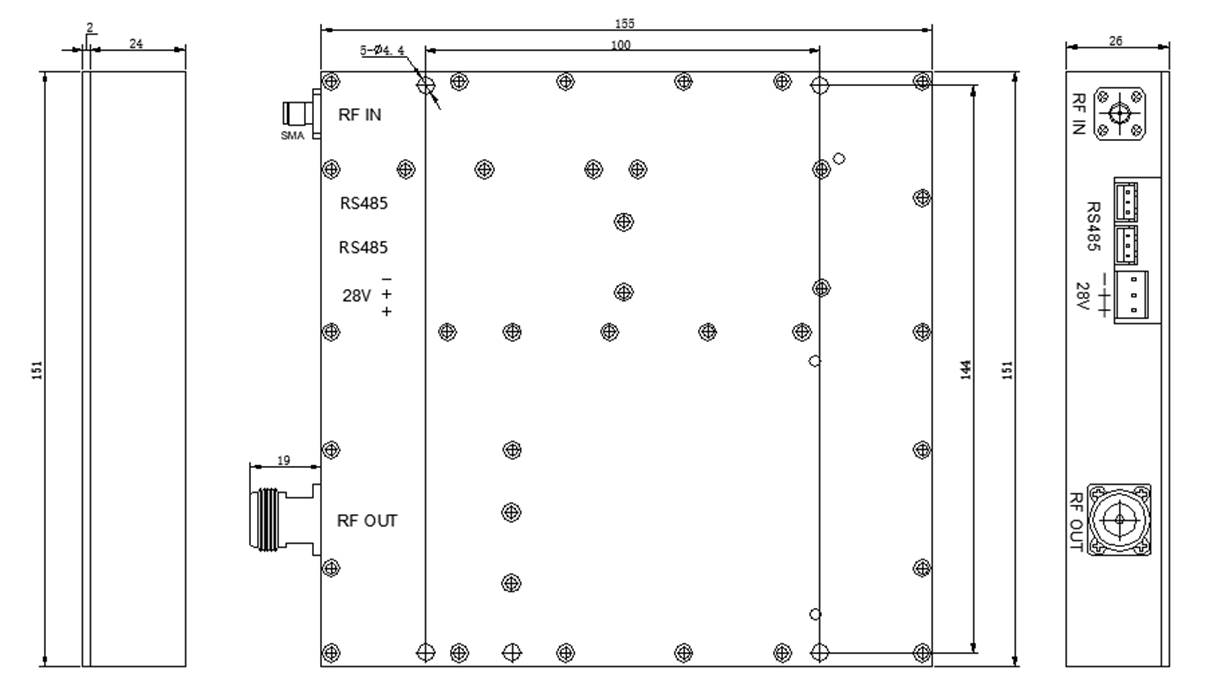

Size	15515121.5mm	SMA-K output port
Size	15515126mm	N-K output port
