Product Description

700~2700MHz /25~50W

Technical specifications:

Item	Indicator	Remark
Frequency range	700~2700MHz	Need to be customized in sections
Maximum working bandwidth	50MHz	700-1000M Band
	60MHz	1000-1500M Band
	100MHz	1500-2700M Band
Output power P_max	45/47±0.5 dBm
Gain	50±1 dB
Passband Ripple	△G_P≤1dB
ALC control range	≥20dB
ATT range	≥25dB
ATT error	≤1.0dB
Port VSWR	≤1.3
Intermodulation or ACPR	≤-40dBc @±1.5MHz	PAR≤8dB
PCDE	≤-35dB
EVM	≤3%
Power amplifier switch	Have	Software control, external control can also be customized
Input power detection	-30 dBm~0 dBm	Software detection, also can customize external analog detection
Output power detection	15dBm~45dBm
Reflected power detection	10dBm~42dBm
Fault alarm	Have	Software detection
VSWR alarm	Have	Software detection, also can customize external analog detection
Temperature detection	-40~100℃
Working voltage	28DCV	28~30DCV
Static working current	≤1.5A
Dynamic working current	≤5A
Operating temperature range	-40~85℃
Monitoring interface	Pin 1: GND Pin 2: RS485-A Pin 3: RS485-B	2 parallel connection, other interfaces can also be customized
RF interface	SMA-K	Customizable
Size	15515121.5mm

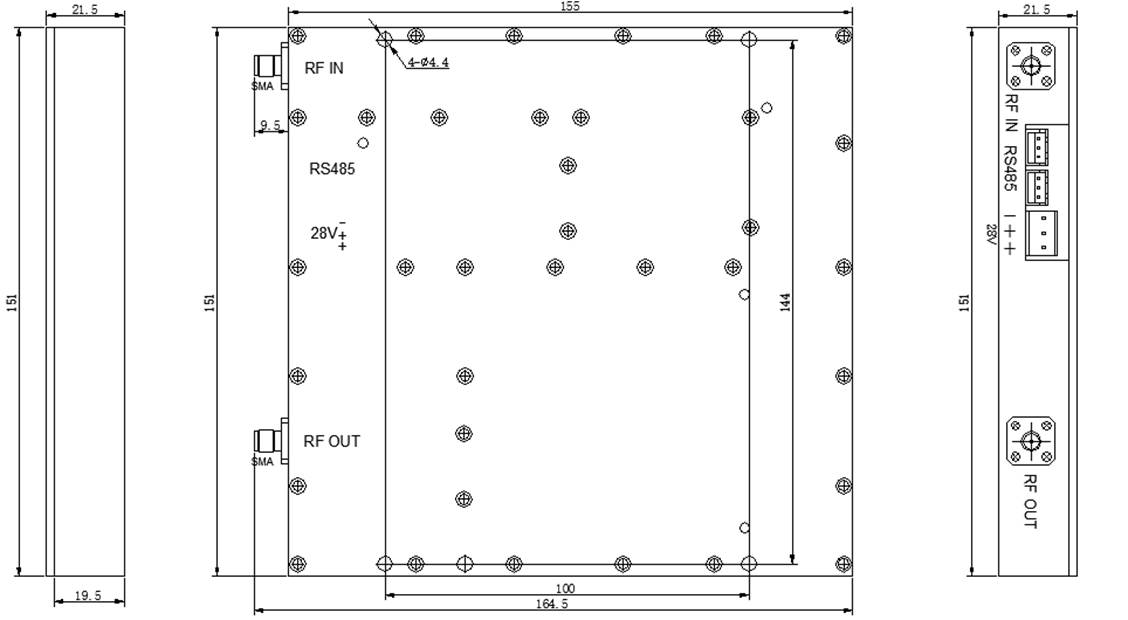

Overall dimension:

Application scope: applicable to 5G, 4G LTE, 3G (WCDMA, UMTS, CDMA2000), 2G (CDMA, GSM, EGSM, DCS, PCS, NB-IOT, Lora),CMMB, DVB-H, T-DMB, S-DMB digital TV communication, GSM-R railway communication and other signal amplification.

Model Rules: LPA 2110 B60 G50 P44 FV1.0

① ② ③ ④ ⑤ ⑥

①LPA: Linear power amplifier

②2110: Star frequency 2110MHz

③B60: Working bandwidth 60MHz

④G50: Gain 50dB

⑤P44: Output power 44dBm

⑥FV1.0: Design version
