DPD Power Amplifier

Classification:

Linear RF PA

Key words:

Complete Equipment Series

Active Module Series

Passive Device Series

Antenna Series

Related Products

Product Description

Technical specifications:

Item	Indicator	Remark
Frequency range	80~2700MHz	Specific frequency customization
Working bandwidth	0.2~100MHz	customization
Output power P_max	44/45/47/50dBm	25W, 30W, 50W, 100W and other customized
Gain	50±1 dB	or customization
Passband Ripple	△G_P≤1dB
ALC control range	≥20dB
ATT range	≥30dB
ATT error	≤1.0dB
Port VSWR	≤1.3
Intermodulation	≤-60dBc	or customization
ACPR	≤-45dBc @±1.5MHz	PAR≤8dB
PCDE	≤-35dB
EVM	≤3%
Power amplifier switch	Have	Software control, external control can also be customized
Input power detection	Have	Software detection, also can customize external analog detection
Output power detection	Have
Reflected power detection	Have
Fault alarm	Have	Software detection
VSWR alarm	Have	Software detection, also can customize external analog detection
Temperature detection	-40~100℃
Working voltage	28~50 DCV	Depends on frequency and power
Static working current	Depends on frequency and power
Dynamic working current	Depends on frequency and power
Operating temperature range	-40~85℃
Monitoring interface	RS485 or RS232
Size	Depends on frequency and power

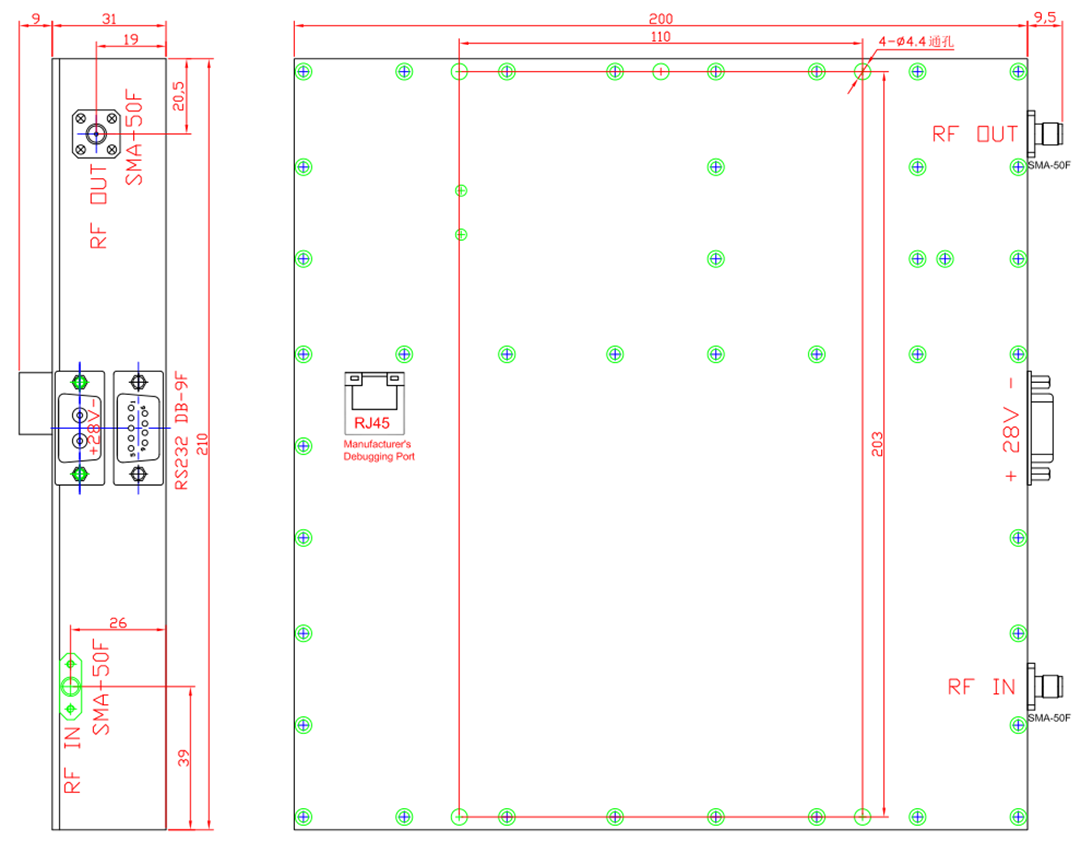

Overall dimension:

Application scope: suitable for all kinds of 5G, 4G LTE TETRA, DTV, FM repeater or base station transmitter systems with high performance and high requirements.

Model Rules: DPA 392 B05 G50 P50 FV1.0

① ② ③ ④ ⑤ ⑥

①DPA: DPD Power Amplifier Module

②392: Star frequency 392MHz

③B05: Working bandwidth 5MHz

④G50: Gain 50dB

⑤P50: Output power 50dBm

⑥FV1.0: Design version
