600-2700Mhz/0.2~1W TD-LTE PA+LNA Integrated module

Classification:

Key words:

Complete Equipment Series

Active Module Series

Passive Device Series

Antenna Series

Product Description

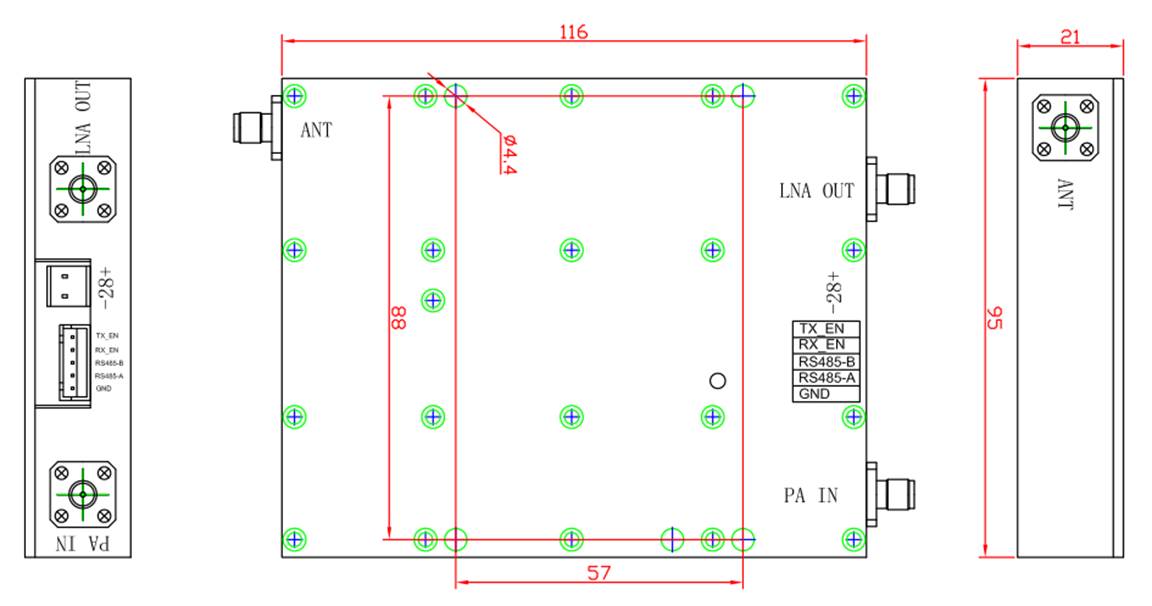

Technical specifications:

Item	Indicator	Remark
Frequency range	1447~1467MHz 1785~1805MHz 1880~1920MHz 2300~2400MHz(N40) 2570~2620MHz(N38) 2496～2690MHz(N41)	One of the band， other band can also be customized
PA output power P_max	23/27/30±0.5 dBm
LNA Output power P_max	0±0.5 dBm
Gain	PA 45±1dB; LNA 30~45±1dB
Pass band Ripple	△G_P≤1.0dB
ALC control range	≥20dB
ATT range	≥25dB
ATT error	≤1.0dB
ACLR(ACPR)	≤-40dBc @±5MHz	PAR≤8dB
PCDE	≤-35dB
EVM	≤3%
Port VSWR	≤1.3
Switch switching delay	≤1us
Uplink noise figure	≤1.5dB
Power amplifier switch	Have	Software control
Input power detection	-30 dBm~0 dBm	Software detection
Output power detection	15dBm~32dBm	Software detection
Reflected power detection	10dBm~30dBm	Software detection
Fault alarm	Have	Software detection
VSWR alarm	Have	Software detection
Temperature detection	-40~100℃	Software detection
Working voltage	28DCV	28~30DCV
Static working current	≤0.4A	Output 27dBm
Dynamic working current	≤0.6A	Output 27dBm
Operating temperature range	-40~85℃
Monitoring interface+Synchronous control	Pin 1: GND Pin 2: RS485-A Pin 3: RS485-B Pin 4: Rx_EN(1 on; 0 off) Pin 5: Tx_EN(1 on; 0 off)
RF interface	SMA-K	Customizable
Power interface	Pin 1,2: 28VDC Pin 3: GND
